 6 Gallon Bucket
Author Message
User avatar

Joined: Mon Mar 21, 2011 3:26 am
Posts: 214
Location: Durban, South Africa
Post 6 Gallon Bucket
Another version of a 6 Gallon Bucket.
It works well enough, and the drain has given me no problems.
Drawings are provided for both metric and imperial units.

http://s1224.photobucket.com/albums/ee364/peteb9/6%20Gallon%20Bucket/

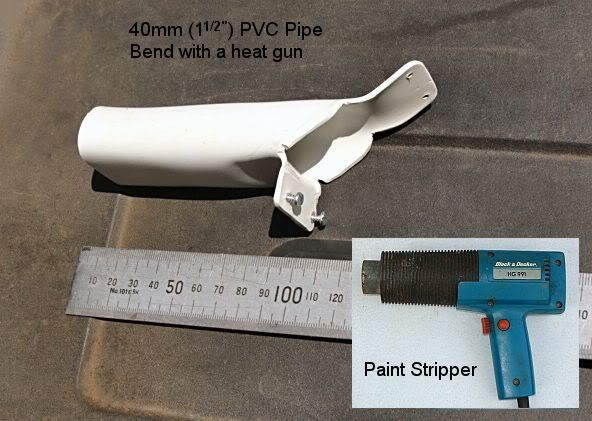

01 Exit Tube

02 Fitted Tube

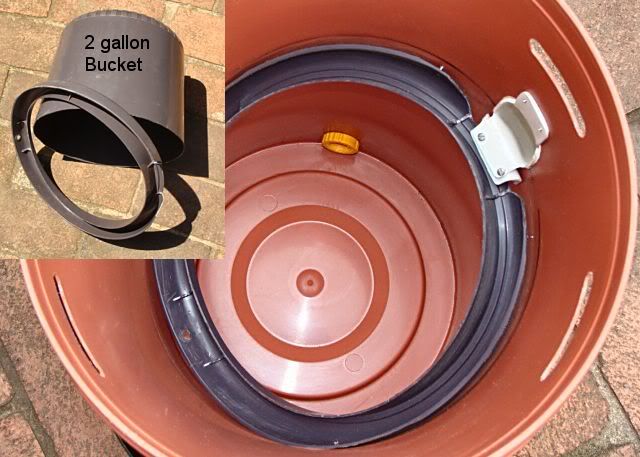

03 Migration Ramp

04 Plaster Filling

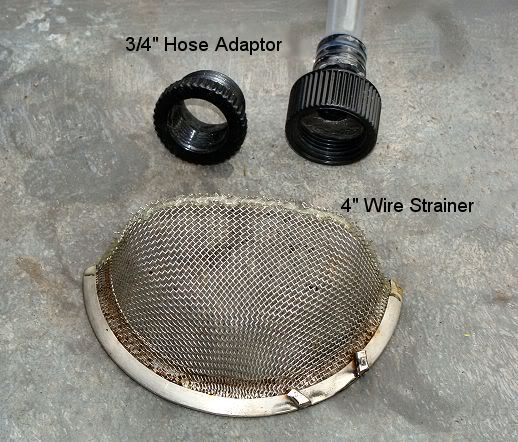

06 Drain Components

07 Drain

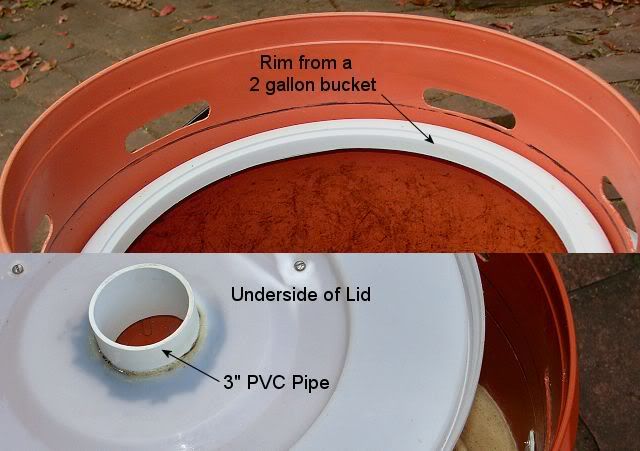

08 Grub Barrier

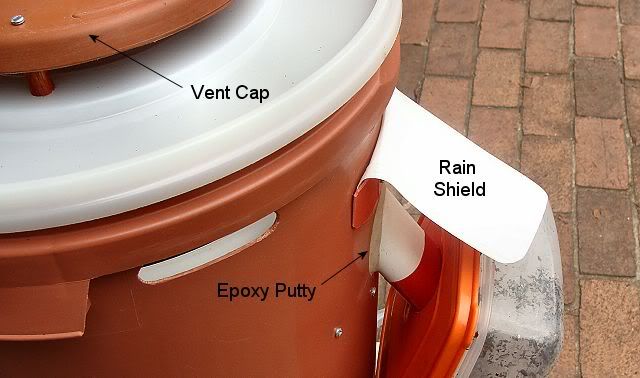

09 Rain Shield

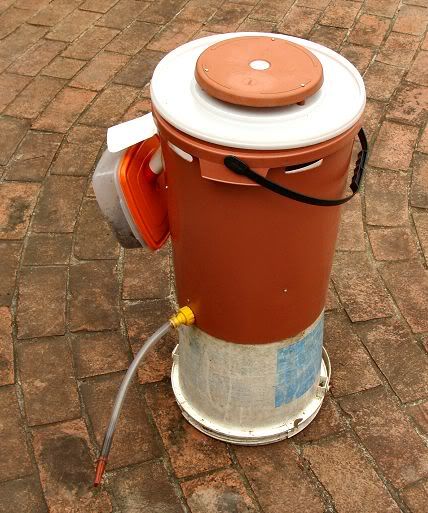

10 Complete Assembly

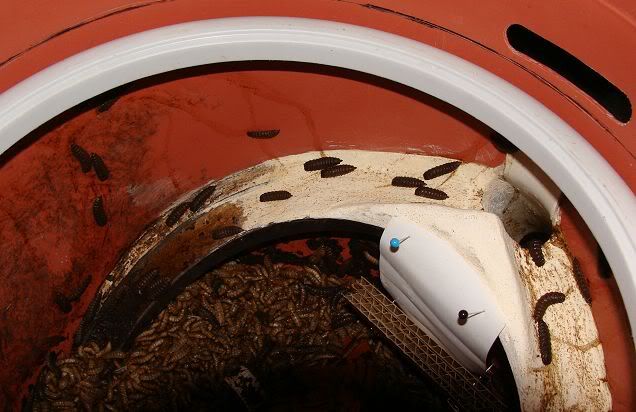

11 Working System

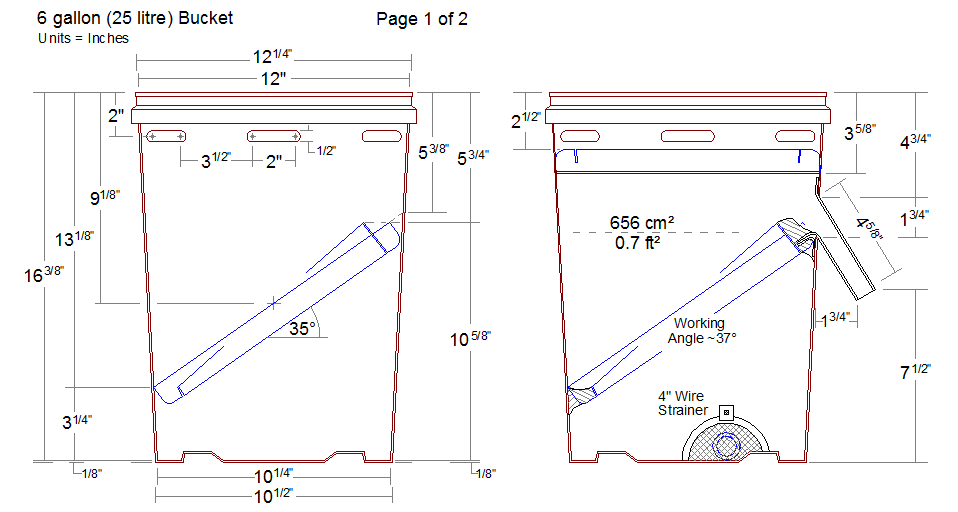

Plans (1 of 2 - Imperial Units)

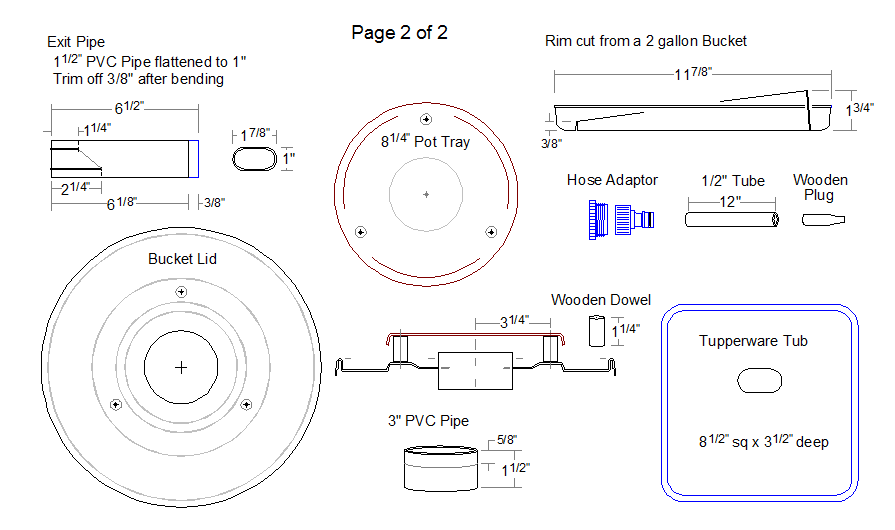

Plans (2 of 2 - Imperial Units)

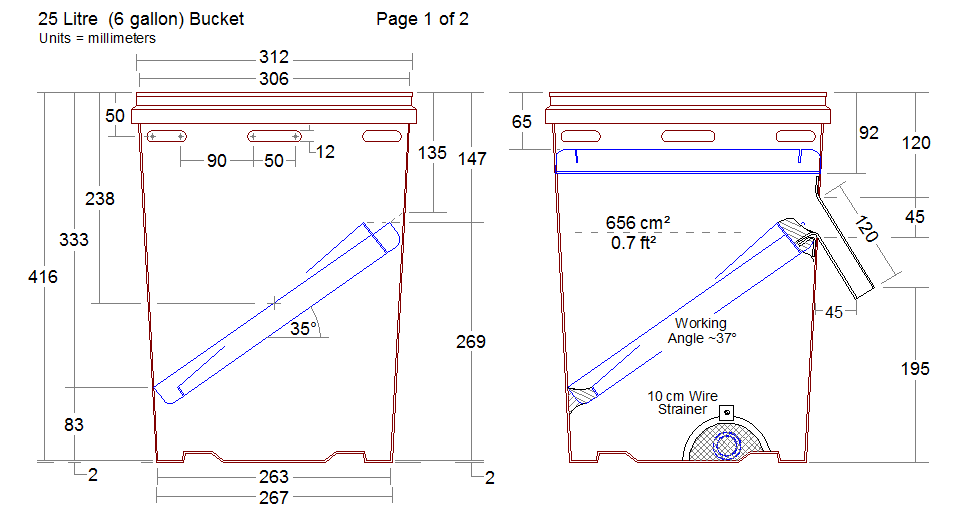

Plans (1 of 2 - Metric Units)

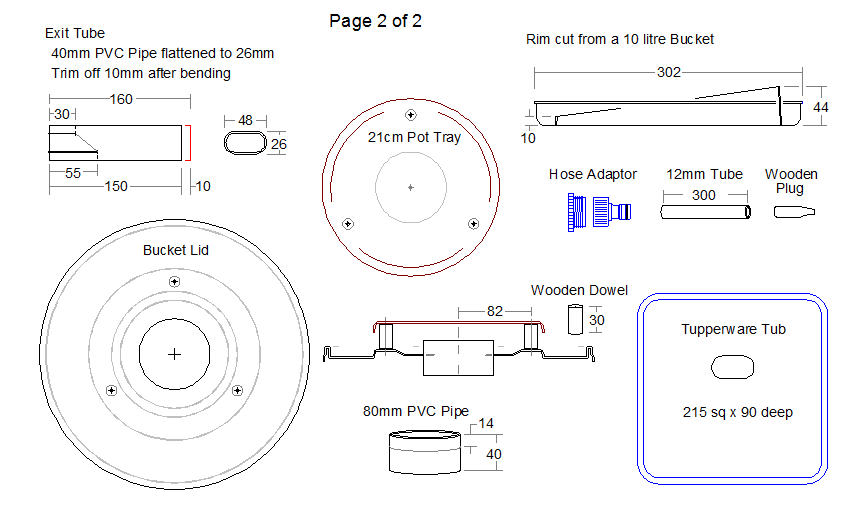

Plans (2 of 2 - Metric Units)


Last edited by BorealWormer on Sun Mar 18, 2012 11:40 am, edited 2 times in total.

Show Full Size Photos Inline - BW



Sun Mar 18, 2012 8:54 am
Profile Send private message

Joined: Wed Mar 14, 2012 10:23 pm
Posts: 16
Location: Arkansas
Post Re: 6 Gallon Bucket
Nice work Pete! 8-)


Sun Mar 18, 2012 9:51 am
Profile Send private message WWW

Joined: Wed Mar 09, 2011 7:09 pm
Posts: 112
Post Re: 6 Gallon Bucket
Very nice!
Thank you!


Mon Mar 19, 2012 7:55 am
Profile Send private message

Joined: Fri May 18, 2012 10:43 am
Posts: 3
Post Re: 6 Gallon Bucket
very nice,. how's its performance? is it comparable to the commercialize biopod in terms of number of BSF pupae being harvested?


Mon May 21, 2012 8:02 pm
Profile Send private message
User avatar

Joined: Mon Mar 21, 2011 3:26 am
Posts: 214
Location: Durban, South Africa
Post Re: 6 Gallon Bucket
This was inspired by Jerry’s DIY bucket composter, and for the same reason, ie. an inexpensive, small scale system to learn about BSF behaviour. For that purpose, it works well. If you are looking for volume and capacity, look for something bigger. We are not competing in that department ;)


Tue May 22, 2012 6:07 am
Profile Send private message
Site Admin
User avatar

Joined: Sat Mar 05, 2011 11:35 pm
Posts: 1608
Location: Central Florida, USA
Post Re: 6 Gallon Bucket
PeteB, as you know I haven't been active on the forum, but after reviewing this thread I would like to thank you for expanding on my bucket design. I love what you've done with it.

_________________
blacksoldierflyblog.com

*I'm not an entomologist, and much of what I write about BSF is an educated guess.


Sun Jan 27, 2013 3:38 pm
Profile Send private message WWW

Joined: Sat Feb 16, 2013 1:30 am
Posts: 14
Location: Central Texas
Post Re: 6 Gallon Bucket
Nice design it really gives me inspiration for building something similar myself.


Sat Feb 16, 2013 4:10 pm
Profile Send private message

Joined: Thu Apr 04, 2013 2:07 am
Posts: 1
Post Re: 6 Gallon Bucket
Hello.. I wonder how the Strainer is working for you..
before i saw this.. i hadconsidered using steel wool as a pre filter.. they may not want to chew threw..
but this looks very easy..

did it ever clog up for you..


Thanks and very good design..
Debra


Fri Apr 05, 2013 9:36 pm
Profile Send private message
User avatar

Joined: Mon Mar 21, 2011 3:26 am
Posts: 214
Location: Durban, South Africa
Post Re: 6 Gallon Bucket
The strainer worked well for me. However, I need a bigger bin these days, and I haven't used it for a while.
I've come to realize it works because most of the water seeps through under the wire.
It drains, even when the screen is blocked off. Before you cut a steel strainer, maybe you could try this:-


Attachments:
01 Filter.jpg
01 Filter.jpg [ 45.44 KiB | Viewed 5855 times ]
02 Diagram.png
02 Diagram.png [ 26.24 KiB | Viewed 5855 times ]
Sat Apr 06, 2013 1:22 am
